IR Turret STL | STEP Files

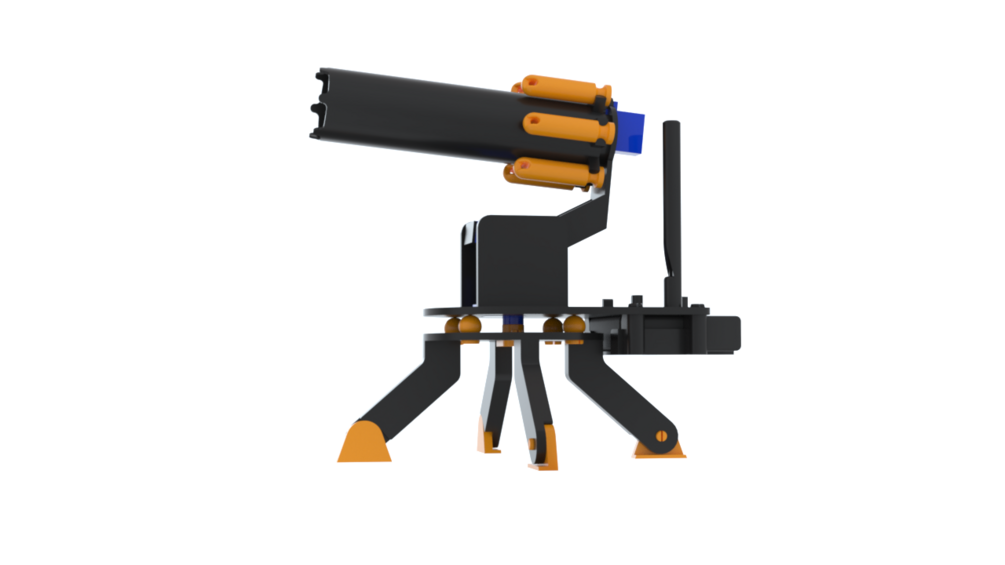

Introducing the IR Turret Robot, inspired by Mark Rober's Hack Pack robotics kits! This innovative project is entirely 3D printed, requiring just a handful of electronic components to bring it to life. It's a fantastic way to dive into DIY robotics with a fun and accessible build.

Want to see how it's done? Watch my detailed video guide, "How to Build the Hack Pack IR Turret from Scratch", where I take you through the entire process step-by-step!

Recommended Hardware:

Arduino Nano: https://amzn.to/40jh3Tr

Sensor Shield: https://amzn.to/3Yh5mKx

Continuous Servo: https://amzn.to/3AaOSLW

180 Servo: https://amzn.to/3BZGaAD

IR Remote: https://amzn.to/4eYhqHt

Rubber Bands: https://amzn.to/3YBAwgQ

Battery Pack: https://amzn.to/3A4581k

Batteries: https://amzn.to/4e5HCij

3D Printer Filament: https://amzn.to/3A93USp

(These links above are all affiliate links that support my YouTube channel**)

Software:

Download software for free from my github page:

https://github.com/herreraengineering/IR-Turret-SW

Print Settings:

Recommended Print Profile Settings:

• Printer: Bambu Labs P1S
• Material ESUN PLA+
• Nozzle: 0.4mm
• Layer Height: 0.2mm
• Infill Density: 15%
• Infill Pattern: Grid

Unique Print Profiles:

• Dart.stl - 0% Infill
• Tilt_Mount - Support Enabled

Print Quantities:

• Balll_Pin x 4
• Barrel x 1
• Base x 1
• Base_Servo_Mount x 1
• Battery_mount x 1
• Dart x 6
• Foot x 4
• Tilt_Mount x 1
• Tilt_Pin x 1
• Top x 1

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object).
